ECR-02A 12/24V Contactless CAN Reader Easy Install for Universal Vehicle

ECR-02A 12V 24V Contactless CAN Reader

Elitek ECR device is applying non-intrusive technology to acquire vehicle-specific data. The usage of the device eliminates any vehicle warranty issue, since it avoids galvanic connection to vehicle communication wires.

The ECR-02A is a upgrade design based on ECR-01(5V), the voltage range is increased to 12/24V, more convenient for vehicle to use and compatible.

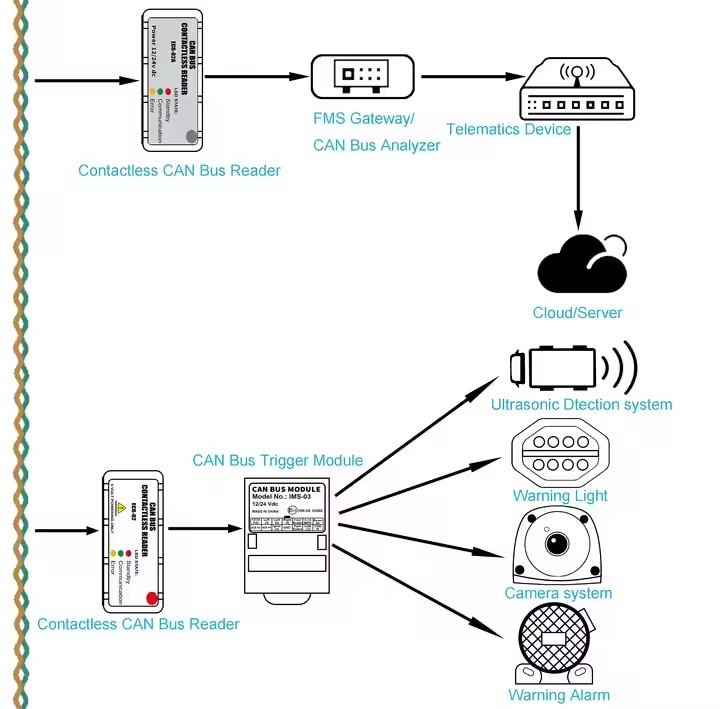

The ECR device can be useful for any aftermarket device that requires vehicle CAN data, Such as:

    • Fault Diagnosis

• Real-time Data Monitoring

• Fleet Management System

• ELITEK CAN Bus Trigger Module

• etc...

Features:

1. Contactless: Acquire CAN data without cutting wires (warranty kept).

2. Built-in protection: Guards against reverse polarity, overvoltage, and overheating.

3. LED status indicator: Get instant visual feedback during setup.

4. Plug & Play: Seamlessly integrates with all CAN trigger modules, FMS gateway, AVL, and other telematics systems using standard CAN or J1708 protocols.

5. Strong grip: Perpendicular fixation ensures that the CAN wires do not slip.

6. 100% SILENT: Works in 'listen only' mode and does not affect the CAN bus.

Specification
