TWBD07-4-LBP Truck Back Detection System

Model No.: TWBD07-4-LBP

1) Rated Voltage: DC 12/24V (Working Voltage Range 10~32V);
2) 2.5/3m detection range (selectable via dip switch); Zone distance: 0 - 0.6 -1 - 2.5m or 0.5 - 1- 1.5 -3m;

3) Improved anti-interference function;
4) Advanced self-diagnosis with error indication;
5) Environment Learning Mode - Prevents false alarms from vehicle ancillary equipment intruding into the first 1m of the detection zone;
6) Obstacles detection in under 200 milliseconds.

7) Waterproof level: ECU: IP69K, Sensor & connector: IP68;

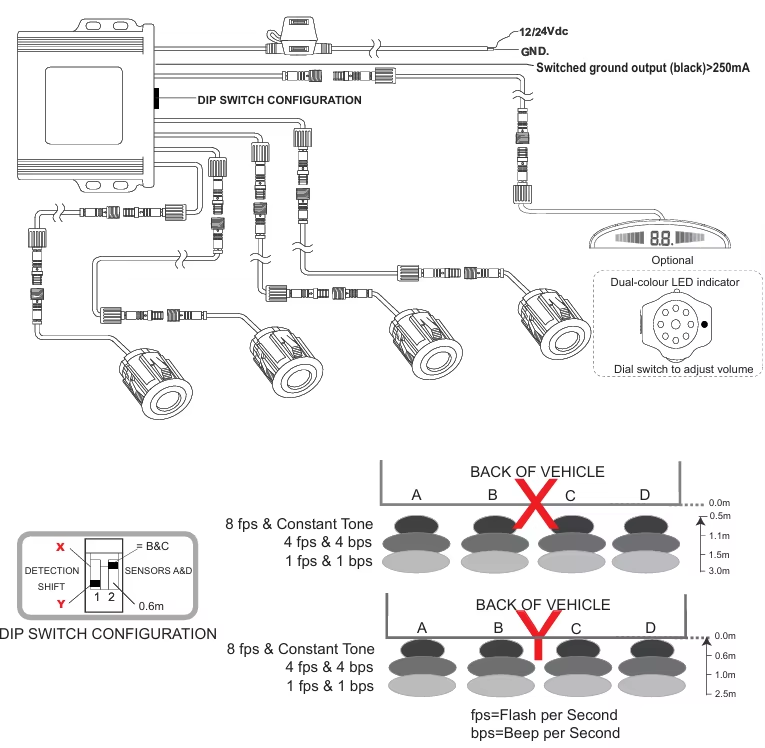

8) 4*LBP SmartSensor module built in double angle sensor, 4*2.5m sensor cable. Different angle mounting bracket (4*0° and 4*11°), 4*underslung;

9) DSP07 display integrates 3 colors LED, 4 - channel display, built - in buzzer, and digital readout;

10) Detection shift to 0.5m away from sensors (selectable via dip switch) for under body mounting;

11) Industrial cables and connectors, Microchip MCU;

12) Indicator module can supply.
